รายละเอียดสินค้า:
|
ชื่อ: | เครื่องดัดอัตโนมัติ spacer | ขนาดสูงสุดของแนวโค้ง: | 2000mm * 2000mm (2500mm * 2500mm) |
---|---|---|---|
ขั้นต่ำขนาดดัด: | 250mm * 200mm | ความกว้างของตัวเว้นวรรคอลูมิเนียม: | 5.5-27mm |
ข้อผิดพลาดด้านมิติ: | ± 0.5 มม | ข้อผิดพลาดมุม: | ±1º |
ความเร็วในการประมวลผล: | ≤26s | ระบบจ่ายอากาศ: | ≥0.65MPa |
พลังงานทั้งหมด: | AC220 / 380V 50Hz 2.5KW | มิติ: | 10500mm * * * * * * * * 2200mm 2600mm |
PLC: | ซีแมนเยอรมัน | อุปกรณ์ไฟฟ้าแรงต่ำ: | ซีแมนเยอรมัน |
เซอร์โวมอเตอร์: | ซีแมนเยอรมัน | ไดร์เวอร์เซอร์โว: | ซีแมนเยอรมัน |
แสงสูง: | เครื่องดัดกระจก,เครื่องดัดอุตสาหกรรม |

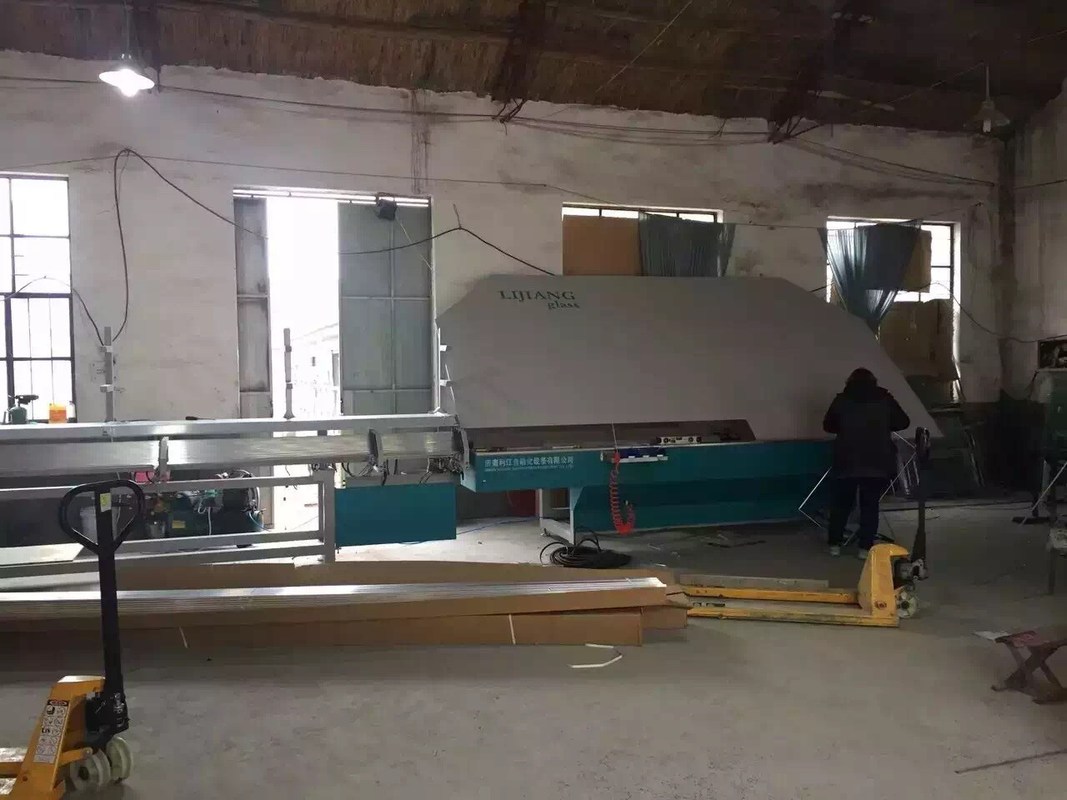

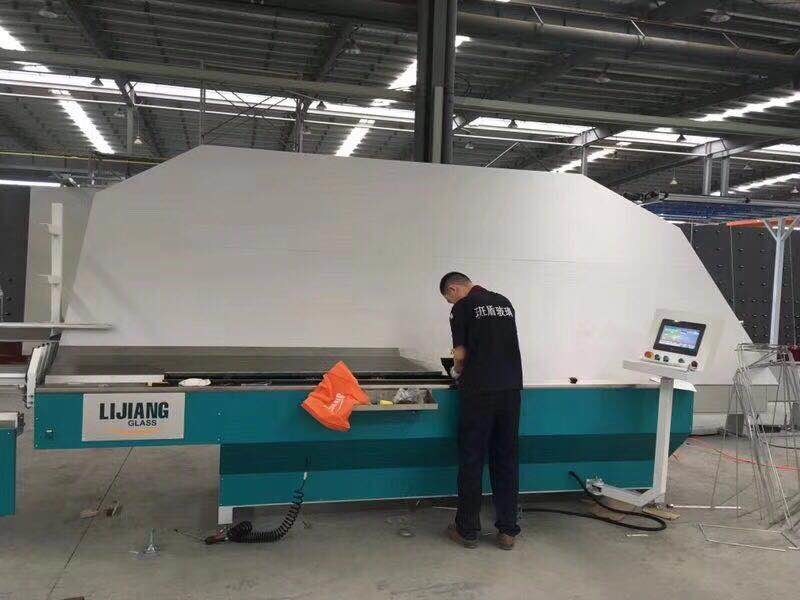

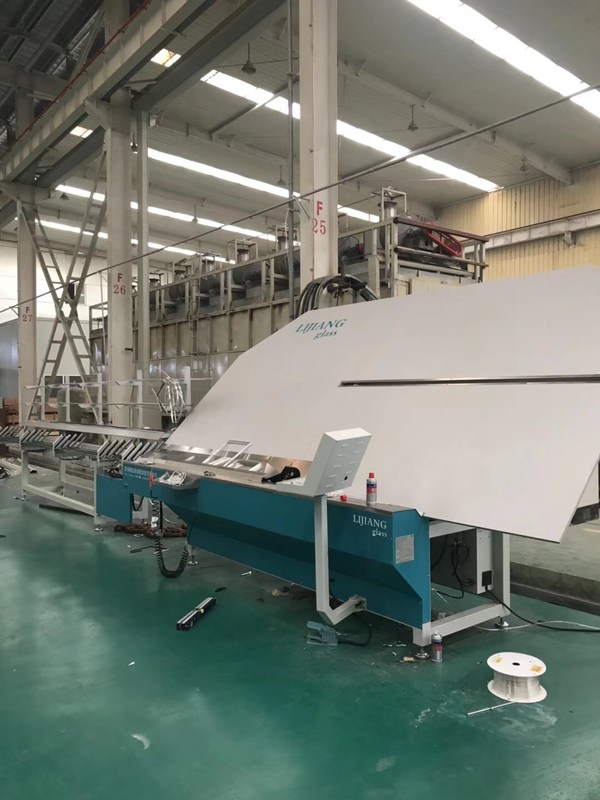

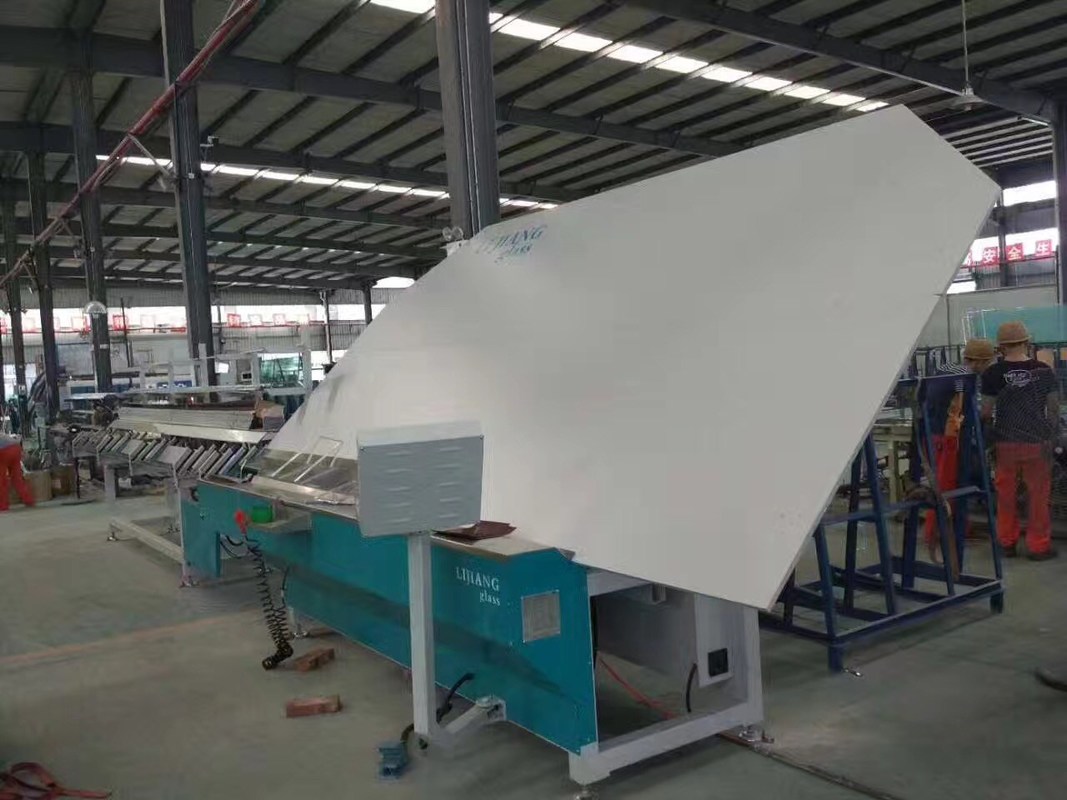

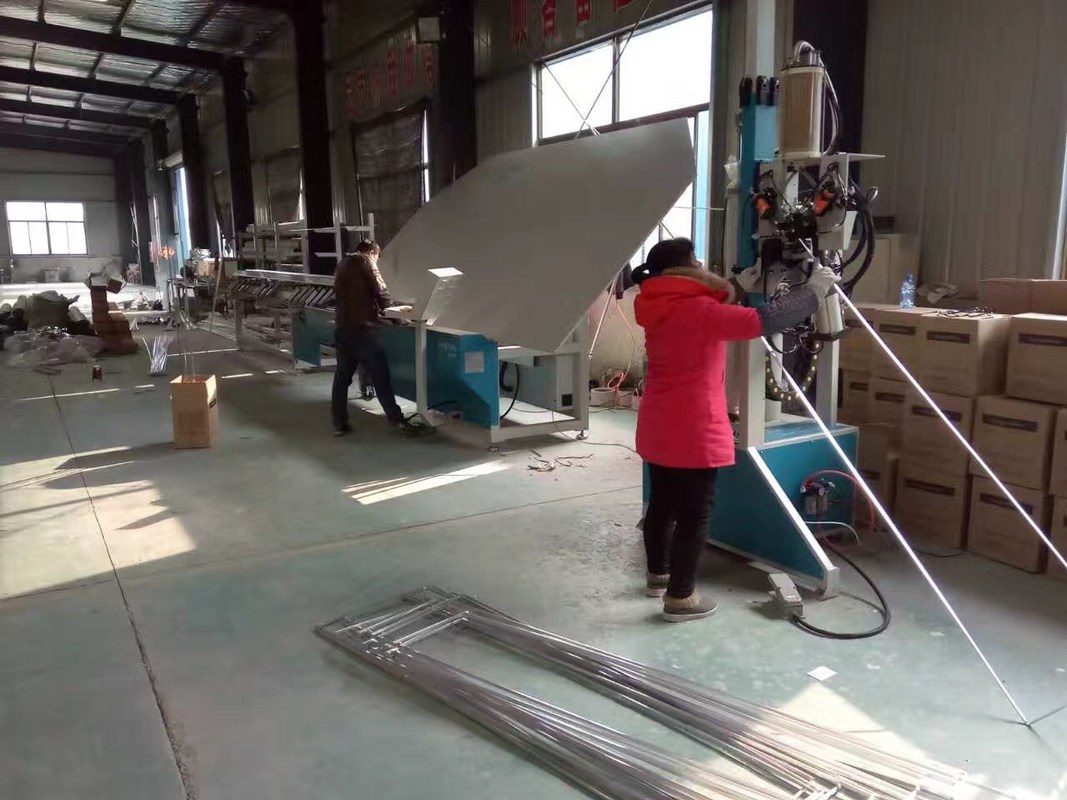

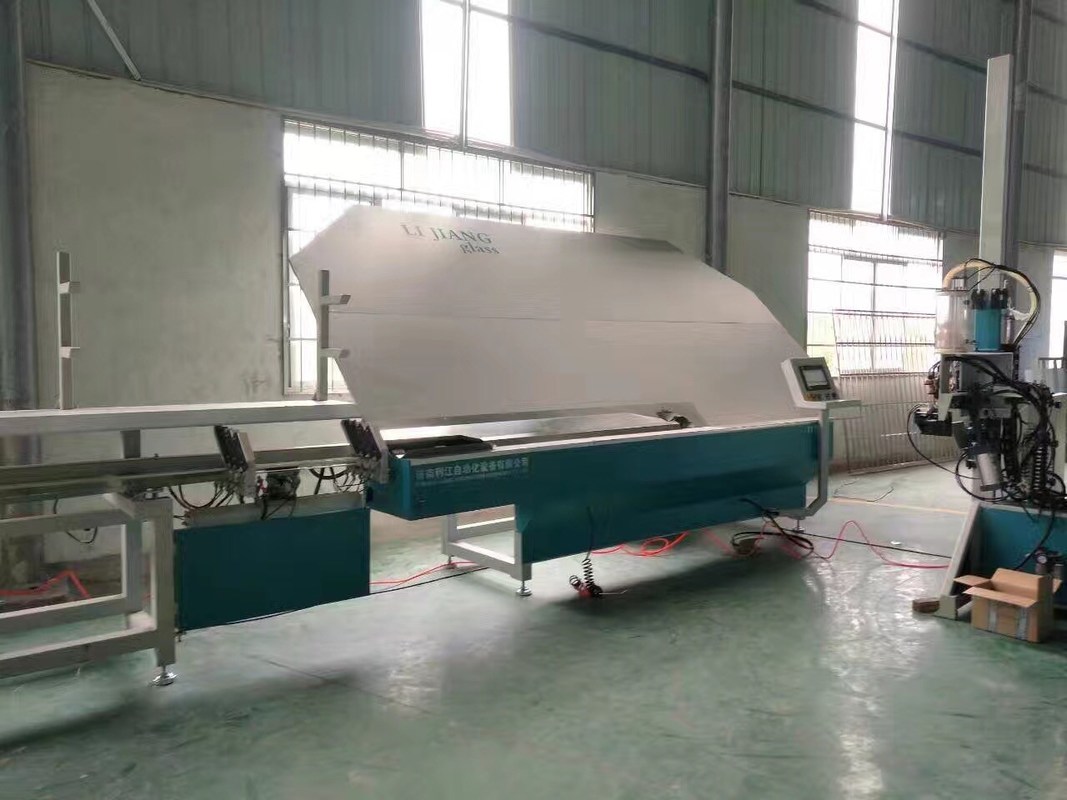

LJZW2020A ฉนวนสายการผลิตแก้ว dustry อลูมิเนียมเครื่อง spacer ดัดง่ายและถูกต้อง
ผลิตภัณฑ์ IG ทั้งหมดลด 20% สำหรับวันที่พฤษภาคม 2020
cleaning and drying section tilted vertical placement. ส่วนการทำความสะอาดและการทำให้แห้งเอียงในแนวตั้ง The control box is arranged on the outside of the cleaning section for easy operation. กล่องควบคุมถูกจัดวางอยู่ด้านนอกของส่วนทำความสะอาดเพื่อให้ใช้งานง่าย The cleaning section and water tank are made of stainless steel and corrosion resistant materials. ส่วนทำความสะอาดและถังเก็บน้ำทำจากสแตนเลสและวัสดุที่ทนต่อการกัดกร่อน The transfer roller is acid-alkali rubber roller. ลูกกลิ้งโอนเป็นลูกกลิ้งยางกรดอัลคาไล The cleaning and drying section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the appropriate speed. ส่วนการทำความสะอาดและการอบแห้งใช้การควบคุมความเร็วในการแปลงความถี่แบบ stepless และกระจกสามารถทำงานได้อย่างราบรื่นด้วยความเร็วที่เหมาะสม In the cleaning section, three pairs of brushes are cleaned with high-pressure water sprayer, which can clean low-e glass. ในส่วนการทำความสะอาดแปรงทำความสะอาดสามคู่ด้วยเครื่องพ่นน้ำแรงดันสูงซึ่งสามารถทำความสะอาดกระจก low-e There is a pair of inclined air knives with baffle in the middle of the drying section, which can be adjusted automatically according to the distance between two air knives with different thickness of glass, thus ensuring the effect of air drying. มีมีดอากาศคู่หนึ่งที่มีแผ่นกั้นอยู่ตรงกลางของส่วนการทำให้แห้งซึ่งสามารถปรับได้โดยอัตโนมัติตามระยะทางระหว่างมีดอากาศสองใบที่มีความหนาของกระจกที่แตกต่างกัน The fan is 11KW. พัดลมคือ 11KW
The water system consists of two independent water circulation systems: the first level water circulation system and the second level water circulation system. ระบบน้ำประกอบด้วยสองระบบการไหลเวียนของน้ำอิสระ: ระบบการไหลเวียนของน้ำในระดับแรกและระบบการไหลเวียนของน้ำในระดับที่สอง Water is pumped out of the water tank by the water pump and sprayed onto the glass surface by the spray pipe. น้ำถูกสูบออกจากถังเก็บน้ำโดยปั๊มน้ำและฉีดลงบนพื้นผิวแก้วด้วยท่อสเปรย์ After cleaning the glass with a brush, the water flows back to the tank for recycling. หลังจากทำความสะอาดกระจกด้วยแปรงแล้วน้ำจะไหลกลับไปที่ถังเพื่อนำไปรีไซเคิล The primary cleaning water tank is equipped with a water heating device with temperature control, which can keep water temperature automatically. ถังเก็บน้ำทำความสะอาดหลักติดตั้งอุปกรณ์ทำน้ำร้อนพร้อมระบบควบคุมอุณหภูมิซึ่งสามารถรักษาอุณหภูมิของน้ำโดยอัตโนมัติ In order to ensure the cleaning effect, the water conductivity must be no greater than 40 (including s, if the water quality is bad, need to be equipped with water treatment equipment, water after water treatment into the rinse water tank, recycling according to the above steps, the water treatment device by the user should bring along their own. เพื่อให้แน่ใจว่าผลการทำความสะอาดน้ำจะต้องไม่เกิน 40 (รวมถึงถ้าคุณภาพน้ำไม่ดีต้องมีการติดตั้งอุปกรณ์บำบัดน้ำ, น้ำหลังจากบำบัดน้ำในถังน้ำล้างรีไซเคิลตาม ขั้นตอนข้างต้นอุปกรณ์บำบัดน้ำเสียโดยผู้ใช้ควรนำมาเอง
ใบสมัคร

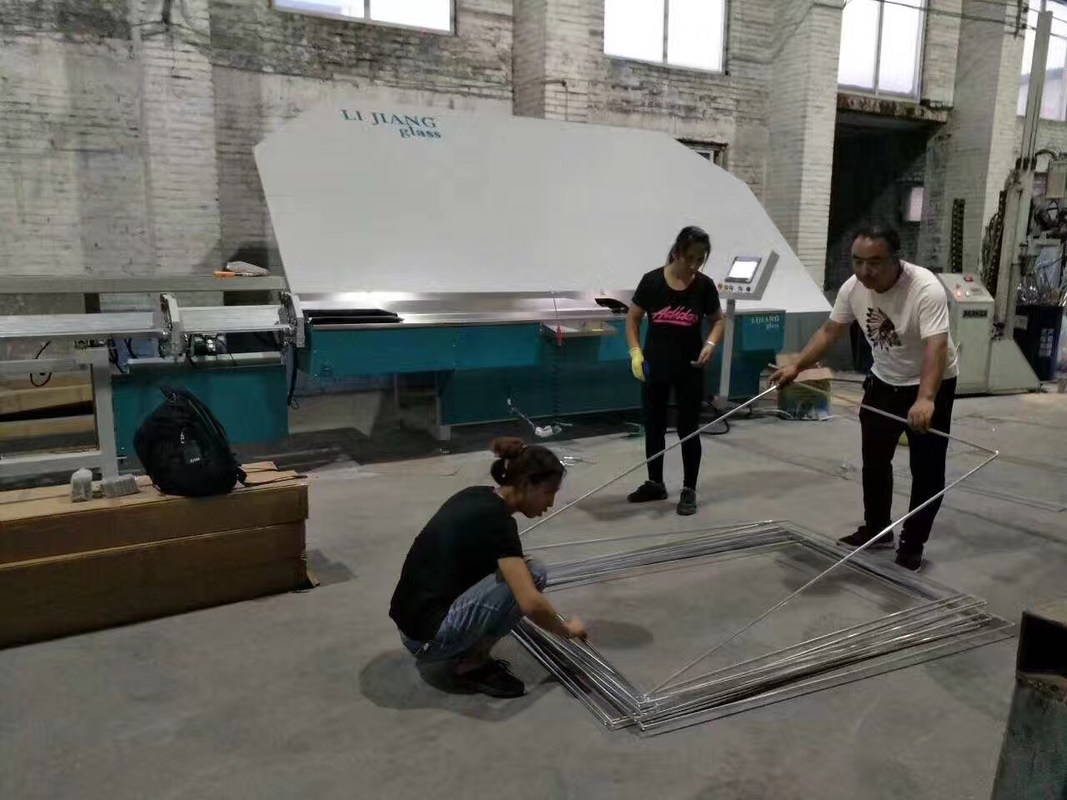

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. เครื่องดัดโค้งอัตโนมัติเป็นอุปกรณ์พิเศษสำหรับทำกรอบอลูมิเนียมของกระจกฉนวนซึ่งแทนที่เทคโนโลยีการผลิตแบบดั้งเดิม This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.cleaning discharge section is inclined vertical structure. อุปกรณ์นี้สามารถสร้างความหลากหลายของกรอบอลูมิเนียมรูปหลายเหลี่ยมนูนโดยหนึ่งแถบอลูมิเนียมในครั้งเดียวจึงเสริมสร้างความแข็งแรงของกรอบอลูมิเนียมทำให้ผลการปิดผนึกของกระจกฉนวนที่ดีขึ้นมากขึ้น The transfer roller is a wear-resistant, acid-proof and alkali polyurethane roll. ลูกกลิ้งโอนเป็นม้วนโพลียูรีเทนที่ทนทานต่อการสึกหรอทนกรดและด่าง It adopts stepless frequency conversion speed regulation. มัน adopts การควบคุมความเร็วการแปลงความถี่ stepless
fully automatic inflatable hollow glass flat compression section. อัตโนมัติส่วนกลวงแก้วเป่าลมพองอัดแบน It is suitable for laminating double layer and multilayer insulating glass. มันเหมาะสำหรับการเคลือบสองชั้นและกระจกฉนวนหลายชั้น
เครื่องนี้สามารถใช้ในการบีบอัดแก้วกลวงที่ประกอบด้วยกระจกภาพถ่ายที่มีรูปร่างต่าง ๆ (รวมถึงกระจกเคลือบและกระจกลามิเนต ฯลฯ )
รายละเอียดอุปกรณ์
ชื่อ | ยี่ห้อ | ชื่อ | ยี่ห้อ |
PLC | ซีแมนเยอรมัน | กลุ่มที่มี 3 คน | ไต้หวัน AIRTAC |
อุปกรณ์ไฟฟ้าแรงต่ำ | ซีแมนเยอรมัน | กระบอก | ไต้หวัน AIRTAC |
เซอร์โวมอเตอร์ | ซีแมนเยอรมัน | โซลินอยด์วาล์ว | ไต้หวัน AIRTAC |
ไดรเวอร์เซอร์โว | ซีแมนเยอรมัน | สวิตช์ไฟ | ไต้หวันมีแนวโน้ม |
ถ่ายทอด | ญี่ปุ่นออมรอน | หน้าจอสัมผัส | WEINVIEW ไต้หวัน |
เซนเซอร์ | KOREA AUTONICS | GUIDE | ไต้หวัน TBI |
