รายละเอียดสินค้า:
|
บีบดัน: | 10-18mpa | อุณหภูมิ: | 110 ° -140 ° |
---|---|---|---|
ความกว้างของตัวเว้นวรรค: | 6A-27A | ความเร็ว: | 5-47m / นาที |
เส้นผ่านศูนย์กลางของถังบิวทิล: | 200mm | ระบบจ่ายอากาศ: | 0.4m³ / นาที |
ความกดอากาศ: | ≥0.6MPa | พลังงานทั้งหมด: | 380V, 5.7KW, 50HZ |
มิติ: | 2800 * 700 * 900mm | ชื่อ: | เครื่องอัดรีดบิวทิล |
การประกัน: | 1 ปี | เงื่อนไข: | ใหม่ |
แสงสูง: | บิวทิลซิลิโคนเคลือบหลุมร่องฟัน,เครื่องแก้วคู่ |
เครื่องอัดรีดบิวทิลอัตโนมัติ
LJTB01

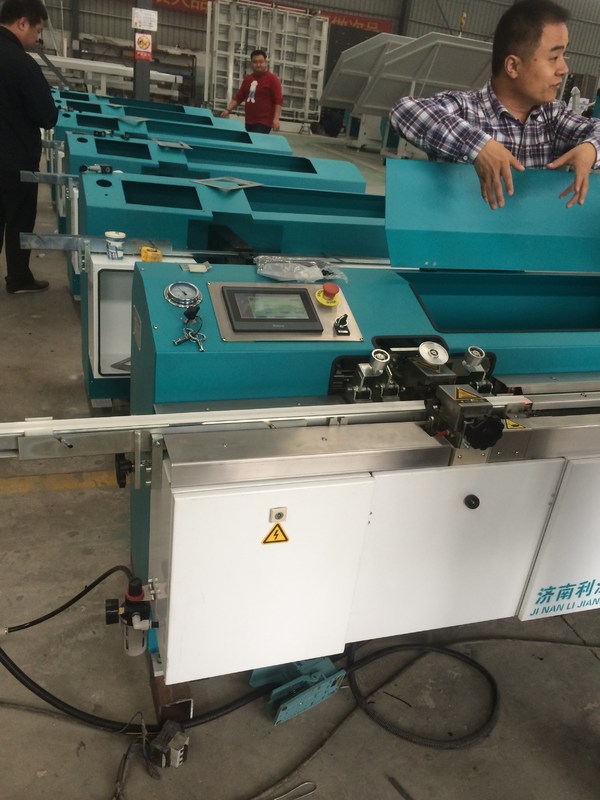

LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. LJTB 01 เครื่องอัดรีดบิวทิลอัตโนมัติใช้สำหรับกระจายเฟรมอลูมิเนียมเป็นตัวเว้นวรรคอย่างสม่ำเสมอด้วยบิวทิลละลายร้อน The butyl extruder uses largeelectrical control panel which makes the operation more easier than before. เครื่องอัดรีดบิวทิลใช้แผงควบคุมไฟฟ้าขนาดใหญ่ซึ่งทำให้การทำงานง่ายขึ้นกว่า แต่ก่อน The conveyor of aluminum is controlled by frequency converter. สายพานของอลูมิเนียมถูกควบคุมโดยเครื่องแปลงความถี่ The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. ความเร็วสามารถปรับได้จาก 0m / min เป็น 47m / min มันเป็นความเร็วที่เร็วที่สุดในจีนจนถึงปัจจุบัน The butyl extruder is very popular with energy-saving. เครื่องอัดรีดบิวทิลเป็นที่นิยมมากในการประหยัดพลังงาน Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. ระบบการบีบอัดใช้ระบบอัดอากาศแบบนิวแมติกและไฮดรอลิกซึ่งทำให้แรงดันในการบีบมีความเสถียรมากขึ้น The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. กระบอกจ่ายใช้ระบบรองรับแนวตั้งแบบหมุนทำให้การเติมบิวทิลง่ายขึ้น The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. ความสูงของหัวบีบสามารถปรับได้โดยอัตโนมัติตามประเภทของอลูมิเนียม spacers Finally, the butyl extruder has reached the worldwide technology with the characteristicofcompletefunctions and stable working mode. ในที่สุดเครื่องอัดรีดบิวทิลก็มาถึงเทคโนโลยีทั่วโลกพร้อมกับคุณสมบัติของคุณสมบัติการทำงานและโหมดการทำงานที่มั่นคง
รายละเอียดอุปกรณ์
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. จี่หนาน LIJIANG อุปกรณ์ QUTOMATIC CO.LTD เป็นองค์กรที่รวมการพัฒนาผลิตภัณฑ์การออกแบบการขายและการบริการทั้งหมด The company is located in the beautiful spring city, Jinan. บริษัท ตั้งอยู่ในเมืองฤดูใบไม้ผลิที่สวยงามจี่หนาน Because it is close to Beijing-shanghai high-speed railwayline,it's very convent for transportation.The company adheres to the “Hi-Q products”. เนื่องจากอยู่ใกล้กับรถไฟความเร็วสูงปักกิ่ง - เซี่ยงไฮ้จึงเป็นคอนแวนต์สำหรับการขนส่ง บริษัท ยึดมั่นกับ“ ผลิตภัณฑ์ Hi-Q” We are striving to create thetop-grade products through setting up Tchnology research and development center, inviting some experts to guide. เรามุ่งมั่นที่จะสร้างผลิตภัณฑ์คุณภาพสูงผ่านการจัดตั้งศูนย์วิจัยและพัฒนาเทคโนโลยีเพื่อเชิญผู้เชี่ยวชาญมาให้คำแนะนำ We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. นอกจากนี้เรายังร่วมมือกับองค์กรที่มีชื่อเสียงในประเทศและนำเข้าเทคโนโลยีขั้นสูงจากต่างประเทศ
ข้อมูลทางเทคนิค
บีบดัน | 10-18MPa |
อุณหภูมิ | 110 ~ 140 ℃ |
ความกว้างของตัวเว้นวรรคอลูมิเนียม | 4-30mm |
ความเร็ว | 0-47m / นาที |
เส้นผ่านศูนย์กลางของถังบิวทิล | 200mm |
ระบบจ่ายอากาศ | 0.4m³ / นาที |
ความกดอากาศ | ≥0.6MPa |
พลังงานทั้งหมด | 380V, 5KW, 50HZ |
มิติ | 2600 × 680 × 1100mm (L × W × H) |
น้ำหนัก | 650kg |
